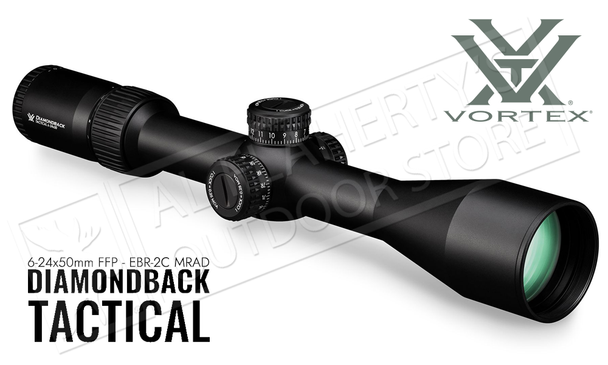

Vortex Diamondback Tactical 6-24X50 FFP EBR-2C MRAD Reticle #DBK-10029

(No reviews yet) Write a Review
SKU:
48793
Type:
Scope - 30mm
  • Vortex Diamondback Tactical 6-24X50 FFP EBR-2C MRAD Reticle #DBK-10029
  • Vortex Diamondback Tactical 6-24X50 FFP EBR-2C MRAD Reticle #DBK-10029
  • Vortex Diamondback Tactical 6-24X50 FFP EBR-2C MRAD Reticle #DBK-10029
CAD $569.00

Description

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.

Features

  • XD Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
  • Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
  • First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
  • Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
  • EBR-2C Reticle (MOA) - Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
  • Tube Size - 30 mm diameter provides maximized internal adjustment and strength.
  • Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
  • Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
  • Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
  • Shockproof - Rugged construction withstands recoil and impact.
  • Hard Anodized Finish - Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
  • Precision-Force Spring System - Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
  • Precision-Glide Erector System - This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
  • Fast Focus Eyepiece - Allows quick and easy reticle focusing.
  • Magnification Rib - The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
  • Includes - Scope, Lens Covers, Lens Cloth, Sunshade

Specifications

  • Magnification: 6-24x
  • Objective Lens Diameter: 50mm
  • Eye Relief: 3.9 inches
  • Field of View: 18-4.5 feet/100 yards
  • Tube Size: 30mm
  • Turret Style: Tall Exposed Tactical
  • Adjustment Graduation: 1/4 MOA
  • Travel per Rotation: 15 MOA
  • Max Elevation Adjustment: 65 MOA
  • Max Windage Adjustment: 65 MOA
  • Parallax Setting: 10 yards to Infinity
  • Length: 14.5 inches
  • Weight: 24.6 ounces
View AllClose

Warranty Information

Manufacturers Warranty - Vortex Optics VIP Warranty

Vortex Optics VIP Warranty

The Vortex warranty is about you, not them.

Repair or replace your Vortex product for any reason at NO CHARGE to you. It doesn't matter how it happened, whose fault it was, or where you purchased it.

  • Unlimited lifetime warranty
  • Fully transferable
  • No warranty card to fill out
  • No receipt needed to hang on to
  • If you ever have a problem, no matter the cause, Vortex promises to take care of you.

To acquire warranty support follow the steps below;

Please print and fill out the Warranty Repair Form (.pdf)

Ship your product in a cardboard shipping carton to the following address
(Vortex asks that you pay for the shipping one way to them, and they will cover the cost of return shipping

Vortex will evaluate your product and repair it at no charge. Some items will need to be shipped to Vortex USA for repair, Vortex Canada will cover all costs associated with shipping and brokerage to and from the USA. Should your item not be repairable, a replacement will be sent.

Full Canadian Vortex VIP Warranty conditions can be found here on the Vortex Canada website

View AllClose
